CryoSwitch - SP6T

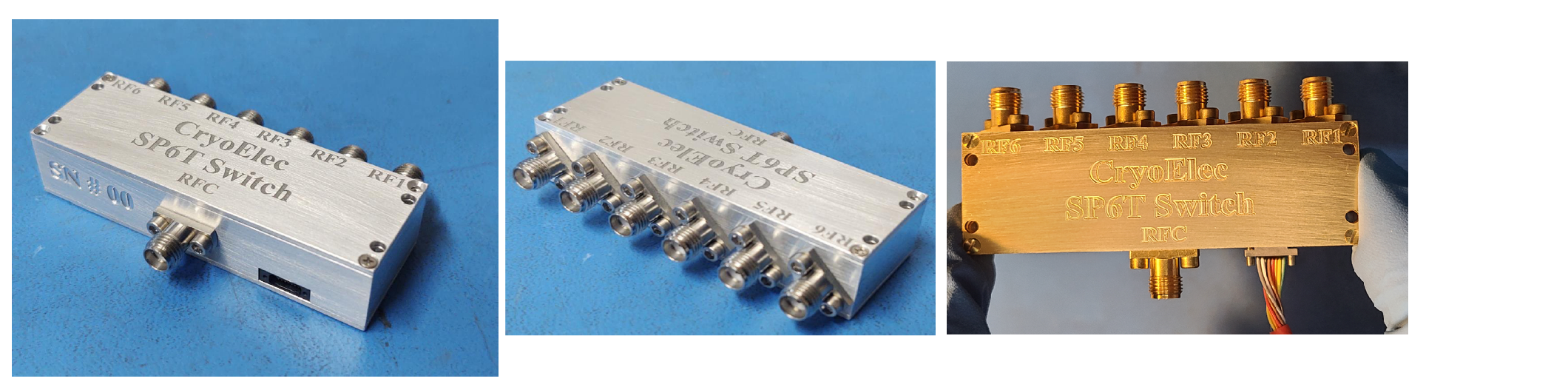

An Ultra low power dissipation (< 1uWatt) , low loss and compact single pole 6 throws (SP6T) Microwave switch for use over a wide range of temperatures requiring only 13 control lines (12x 90V lines + GND) . The switch has less than 3dB insertion loss from DC to 18GHz at cryogenic temperature and can be used up to 26GHz. The Switches are individually cooled and tested at 15Kelvin - 4Kelvin temperature range but are being used at sub-Kelvin temperature down to 50 milli-Kelvin by a growing low temperature physics and quantum computing community. An easy to use 90V control board will be supplied to enable easy control and automation of the CryoSwitch requiring only a 5V DC voltage input.
Datasheet: CryoElec CryoSwitch SP6T
Custom Non-Magnetic (low Magnetism) version of the SP6T is available on demand. Datasheet of the Non Magnetic SP6T can be found here
A custom version of the SP6T requiring only 9 control wires (8 Lines + GND) is also available in standard Aluminum or NonMagnetic Copper Chassis. Datasheet is available here
3D Solid Model Step File can be found here
For more Information Contact us here
